19 Ways to Use Excel’s New Checkboxes Feature

Bottom Line: Excel's new checkboxes feature offers a versatile way to manage data, from simple checklists to interactive charts.

Skill Level: Beginner

Watch the Tutorial

Download the Excel File

You can follow along using the same Excel file that I used in the video.

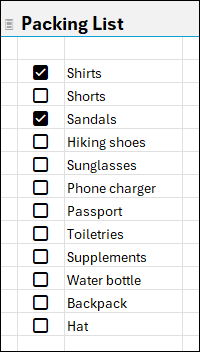

1. Simple Checklist

Create a basic checklist for tasks like packing for a vacation. Insert checkboxes next to your list, allowing you to check off items as you go. The checkboxes are interactive—just click to check or uncheck, or use the space bar for quick toggling.

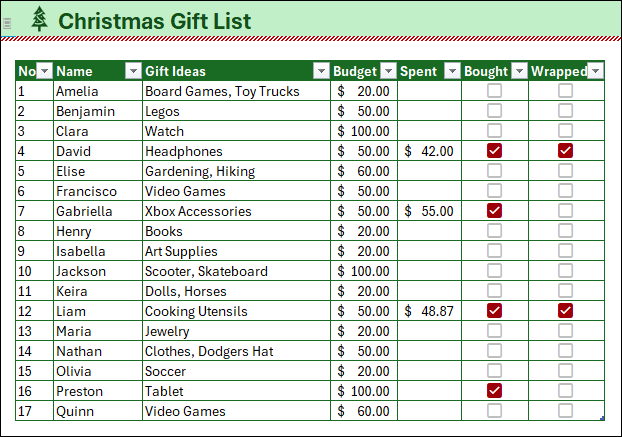

2. Conditional Formatting for a List

Enhance your lists, such as a Christmas gift list, by applying conditional formatting to checked items. When an item is checked, the checkbox changes to a different color, like red, making it easier to see what's been completed.

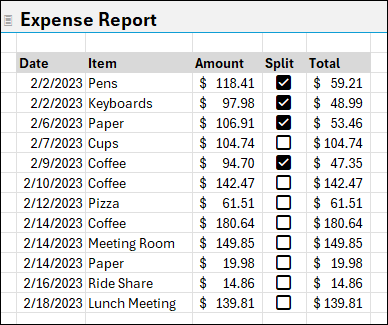

3. IF Formula

Use the IF formula with checkboxes to automate calculations. For example, in an expense report, a checked checkbox can split an amount in half, simplifying calculations for users.

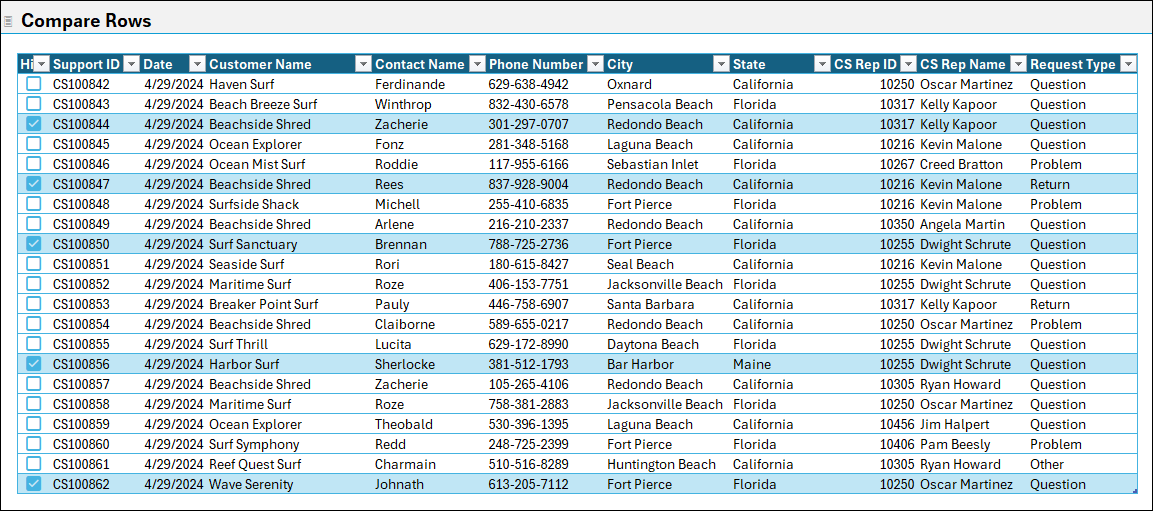

4. Highlight Entire Row

Make comparisons easy by highlighting entire rows when checkboxes are checked. This is done using conditional formatting, making specific rows stand out for review.

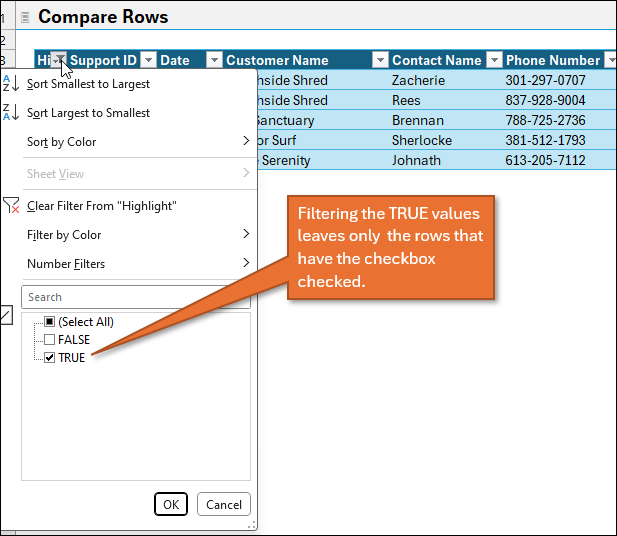

5. Filter to Compare Rows

Compare multiple rows by filtering checkboxes. Filter your list to show only checked items, allowing you to focus on specific data points for comparison.

6. Format Checked Items

Automatically format other cells when a checkbox is checked. For instance, change the font color to gray for completed tasks, helping to differentiate them from the remaining items.

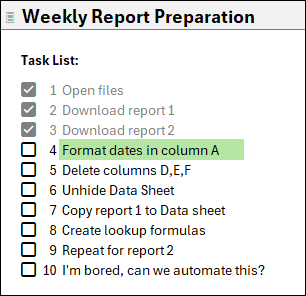

7. Highlight Next Item in List

Guide your progress by highlighting the next item in a list when the current one is checked. This method draws attention to what needs to be done next.

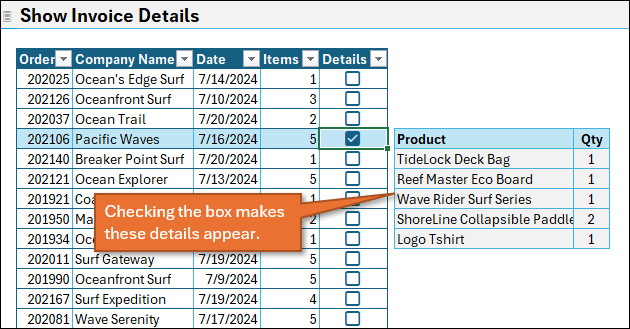

8. Show Details on a Table

Use checkboxes to reveal details in a table. For example, checking a box could display all line items associated with an order, using functions like FILTER and XLOOKUP.

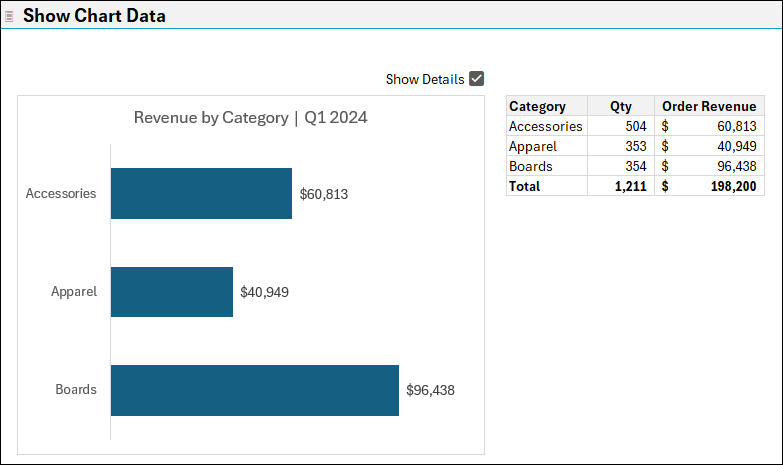

9. Show Details on a Chart

Similar to revealing details in a table, you can use checkboxes to show or hide data in a chart. This can help focus attention on specific metrics, like comparing revenue versus budget.

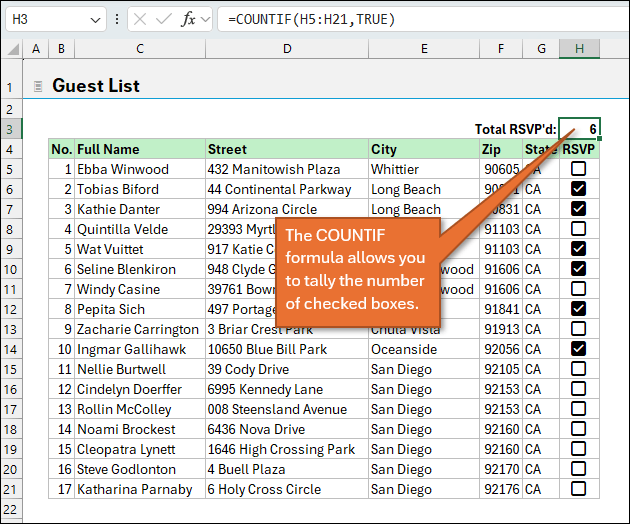

10. Counting Checkboxes

Easily count the number of checked boxes with a COUNTIF formula. You can use this for attendance tracking, inventory management, and more.

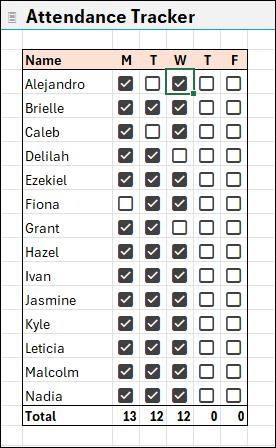

11. Attendance Tracker

Streamline attendance tracking by selecting multiple checkboxes at once. For example, check all present students with the space bar, and then uncheck any absentees with your mouse.

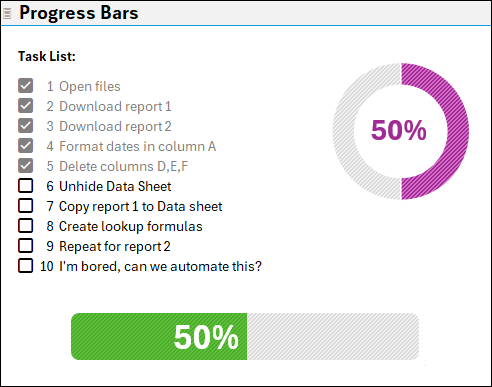

12. Progress Chart

Visualize your progress with charts linked to checklists. As items are checked off, the progress is reflected in either a bar or donut chart, giving you a visual summary of what's completed.

Get more information about making progress charts with this tutorial: 8 Types of Progress Charts

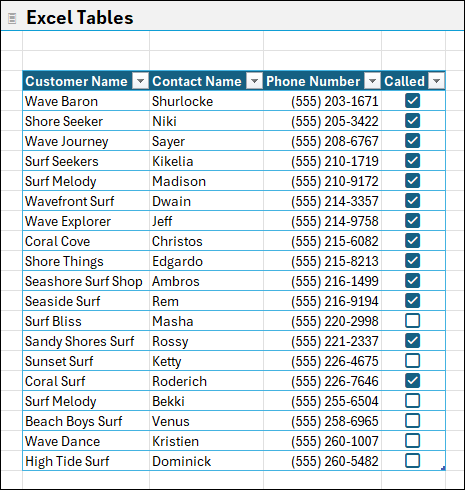

13. Excel Tables

Checkboxes are fully compatible with Excel tables. As you add new rows, the checkboxes automatically extend, making them a powerful tool for managing dynamic data sets.

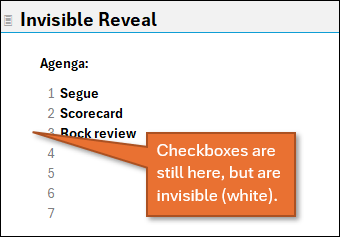

14. Reveal List and Invisible Reveal

Use checkboxes to gradually reveal a list during a presentation, keeping the audience engaged.

Alternatively, hide the checkboxes themselves for a cleaner look while maintaining functionality.

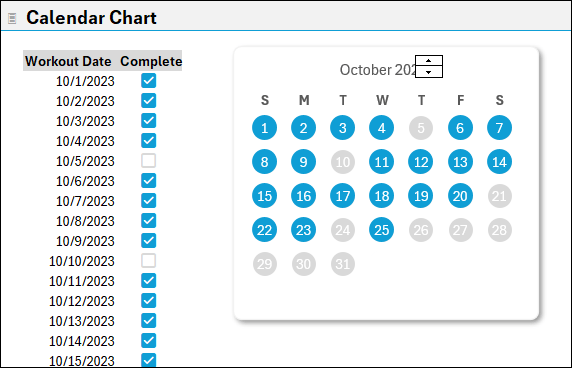

15. Calendar Chart

Link checkboxes to a calendar chart to track deadlines or progress visually. Checking an item highlights the corresponding date, providing an intuitive view of your schedule.

Learn how to build this chart in this tutorial: Create a Calendar Chart

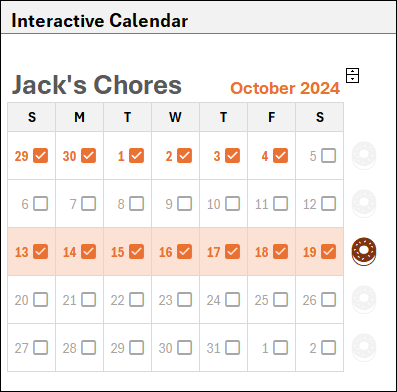

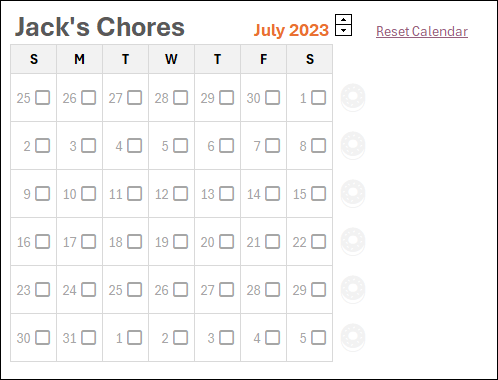

16. Interactive Calendar

Create an interactive calendar where entire weeks light up when all tasks are checked. This method is great for tracking weekly goals, with a reward or completion marker for fully checked weeks.

This post will teach you how to build it: Interactive Calendar Chart with Weekly Goals

17. Reset Button

Quickly reset all checkboxes without using macros. Use a hyperlink to select the range of checkboxes, and then hit the space bar to clear them all at once.

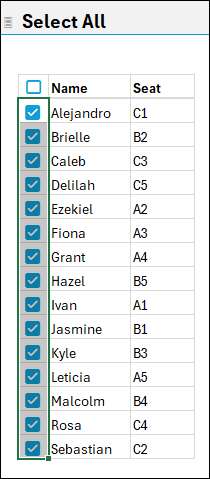

18. Select All Button

Add a “Select All” button using a similar technique to the reset button, allowing users to check all boxes in a list simultaneously.

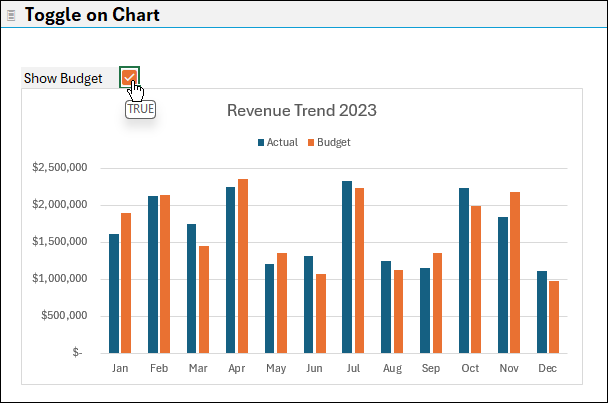

19. Toggle Chart Series

Control which data series appear in a chart by toggling checkboxes. For example, you can hide or show the budget line in a revenue versus budget chart, giving you a focused view of the data.

Final Tips for Using Excel's Checkboxes

Here are a few final tips to help you make the most of Excel's checkboxes:

• Alignment Options: By default, checkboxes are center-aligned when inserted. However, you can easily adjust them to be left or right-aligned using the horizontal and vertical alignment options available in Excel.
• Deleting Checkboxes: If you need to delete checkboxes, simply hit the Delete key on your keyboard. If any checkboxes are checked when you press Delete, they will be unchecked first. Press Delete again to remove them completely.
• No More Ghosting: Early beta versions of the checkbox feature had a ghosting issue when deleting checkboxes, but this has been resolved in the production release.
• Availability: As of July 31, 2024, checkboxes have been fully released to the production version of Excel for Microsoft 365 users on Windows and Mac. While web and mobile versions are still being rolled out, other channels will follow soon. Be aware that checkboxes are not backwards compatible, so users on older versions of Excel will see only TRUE/FALSE values instead of checkboxes. Here is a blog post from Microsoft that explains more about availability.

Conclusion

I hope this blog post has inspired you to explore all the ways you can use Excel's new checkboxes feature to enhance your spreadsheets. Whether you're creating simple checklists, interactive charts, or anything in between, checkboxes offer a versatile tool to bring your data to life.

Which of these 19 ways can you see yourself using soon? Leave a comment below to let us know, or if you have any questions!
