VBA Macro to Create Power Query Connections for All Excel Tables

Bottom Line: Learn how to use a macro to create connection-only queries for all tables in the workbook.  This includes adding the data to the Data Model.

Skill Level: Advanced

Video Tutorial

Watch on Youtube & Subscribe to our Channel

Download the Excel File with Macro

The macro I've created is included in this Excel file. This is the same workbook I use in the video. You can download the file and add the macro to your Personal Macro Workbook.

If you're new to Power Query, I recommend checking out this overview, and then using this tutorial to get it installed properly.

Speeding Up a Tedious Process

Creating connection-only queries to tables takes time.  I've detailed the steps of the process in this post: How to Combine Tables with Power Query. It basically involves accessing the Import Data window and selecting Only Create Connection for each and every table that you want to combine.

Import Data Window Only Create Connection

However, I've automated this process with a macro that takes less than one second to run. The run time will vary depending on how many tables your workbook has, but it's pretty fast!

What the Macro Does

The macro creates connection-only queries in Power Query for all tables in the workbook.

Queries and Connections Pane showing all connections

How the Macro Works

When you run the macro it:

  1. First double-checks that you intend to run it with a yes/no message box. Checkout video #4 in my Personal Macro Workbook video series to learn more about yes/no message boxes.
  2. The macro then asks the user if the data should be added to the Data Model. This is the same as pressing the checkbox on the Data Import Window.
  3. Then the macro loops through all of the tables in all of the worksheets and creates connections for each table.
  4. The macro will only create connections if a query for the table does NOT already exist.  It does not create duplicate queries for tables with existing connections.

Here is the VBA code for the macro:

Sub Add_Connection_All_Tables()
'Creates Connection Only Queries to all tables in the active workbook.

Dim wb As Workbook
Dim ws As Worksheet
Dim lo As ListObject
Dim sName As String
Dim sFormula As String
Dim wq As WorkbookQuery
Dim bExists As Boolean
Dim vbAnswer As VbMsgBoxResult
Dim vbDataModel As VbMsgBoxResult
Dim i As Long
Dim dStart As Double
Dim dTime As Double

  'Display message box to prompt user to run the macro
  vbAnswer = MsgBox("Do you want to run the macro to create connections for all Tables in this workbook?", vbYesNo, "Power Query Connect All Tables Macro")

  If vbAnswer = vbYes Then

    'Prompt user for Data Model option
    vbDataModel = MsgBox("Do you want to add the data to the Data Model?", vbYesNo + vbDefaultButton2, "Power Query Connect All Tables Macro")

    'Set variables
    dStart = Timer
    Set wb = ActiveWorkbook

    'Loop sheets and tables
    For Each ws In ActiveWorkbook.Worksheets
      For Each lo In ws.ListObjects

        sName = lo.Name
        sFormula = "Excel.CurrentWorkbook(){[Name=""" & sName & """]}[Content]"

        'Check if query exists
        bExists = False
        For Each wq In wb.Queries
          If InStr(1, wq.Formula, sFormula) > 0 Then
            bExists = True
          End If
        Next wq

        'Add query if it does not exist
        If bExists = False Then

          'Add query
          wb.Queries.Add Name:=sName, _
                         Formula:="let" & Chr(13) & "" & Chr(10) & "    Source = Excel.CurrentWorkbook(){[Name=""" & sName & """]}[Content]" & Chr(13) & "" & Chr(10) & "in" & Chr(13) & "" & Chr(10) & "    Source"
          'Add connection
          wb.Connections.Add2 Name:="Query - " & sName, _
                              Description:="Connection to the '" & sName & "' query in the workbook.", _
                              ConnectionString:="OLEDB;Provider=Microsoft.Mashup.OleDb.1;Data Source=$Workbook$;Location=" & sName & ";Extended Properties=""""", _
                              CommandText:="SELECT * FROM [" & sName & "]", _
                              lCmdtype:=2, _
                              CreateModelConnection:=False, _
                              ImportRelationships:=False

          'Add to Data Model
          If vbDataModel = vbYes Then
            wb.Connections.Add2 Name:="Query - " & sName, _
                                Description:="Connection to the '" & sName & "' query in the workbook.", _
                                ConnectionString:="OLEDB;Provider=Microsoft.Mashup.OleDb.1;Data Source=$Workbook$;Location=" & sName & ";Extended Properties=", _
                                CommandText:="" & sName & "", _
                                lCmdtype:=6, _
                                CreateModelConnection:=True, _
                                ImportRelationships:=False
          End If

          'Count connections
          i = i + 1

        End If
      Next lo
    Next ws

  'Calc run time
  dTime = Timer - dStart

  MsgBox i & " connections have been created in " & Format(dTime, "0.0") & " seconds.", vbOKOnly, "Process Complete"

  End If

End Sub

How to Use It in Your Work

This is a great macro to add to your Personal Macro Workbook because you will be able to run it on any open workbook. If you don't have your PMW set up yet, this tutorial will help you: How to Create a Personal Macro Workbook.

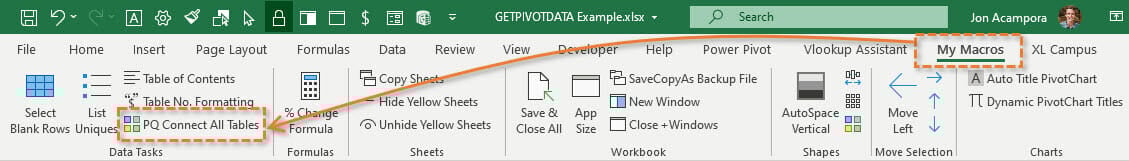

Then create a macro button by customizing the ribbon.  Check out this article on How to Add Macro Buttons to the Ribbon for details.

Custom Macro Ribbon in Excel - Power Query Connect All Tables

You can then run the macro on any open workbook.

Free Training Webinar on the Power Tools

Right now I'm running a free training webinar on all of the Power Tools in Excel. This includes Power Query, Power Pivot, Power BI, pivot tables, macros & VBA, and more.

It's called The Modern Excel Blueprint. During the webinar I explain what these tools are and how they can fit into your workflow.

Modern Excel Blueprint Training Webinar Excel Campus Jon Acampora

You will also learn how to become the Excel Hero of your organization, that go-to gal or guy that everyone relies on for Excel help and fun projects.

The webinar is running at multiple days and times. Please click the link below to register and save your seat.

Click Here to Register for the Free Webinar

Conclusion

If you have multiple tables that you are looking to combine, this macro will save you tons of time establishing connections so that you can merge or append in Power Query.

If you use the macro, I'd love to hear how long it takes for the macro to create all of your connections. Leave a comment with the number of seconds it took!
